IN Brief:
- IEEE 802.3bt extends PoE power delivery to support industrial edge devices that exceed earlier 15.4W and 30W limits.
- High-power PoE enables AI cameras, Wi-Fi 6/7 access points, IIoT sensors, LED lighting, and other demanding connected equipment.
- Type 3 and Type 4 PoE switches are becoming core infrastructure for scalable, AI-ready industrial networks.
By Henry Martel, Field Application Engineer at Antaira Technologies
High-power PoE (IEEE 802.3bt) is the power infrastructure the intelligent edge has been waiting for. As factories automate, smart cities scale, and mission-critical networks push compute closer to the action, a single cable now needs to do it all: deliver the bandwidth and the wattage to keep pace with multi-sensor fusion, advanced imaging, and real-time analytics. IEEE 802.3bt rises to meet that demand, purpose-built for an era where edge devices do not just connect, they compute.
Earlier PoE standards, IEEE 802.3af (15.4W) and 802.3at (30W), were not designed for this new generation of AI-enabled edge devices. Today’s 4K/8K security cameras, Wi-Fi 6/7 APs, and IIoT sensors frequently exceed 30W to 60W of power consumption, creating the need for a new standard supporting the next decade of power-hungry edge equipment.
IEEE 802.3bt meets this demand head-on. It delivers up to 90W to 100W per port at the PSE, enough to power AI-enhanced vision and inference modules. Industrial analytics systems run with the stable, uninterrupted power they need for real-time operation, while the standard’s backward compatibility makes scaling AI and IIoT deployments straightforward and future-ready. In short, high-power PoE has become a foundational element for industrial AI-ready networks.
Built for the AI-driven industrial edge
Prior PoE standards were limited by available power, leaving them unable to meet the requirements of PTZ cameras, robotics, LED lighting, RFID readers, or HD/4K displays. Power dissipation further constrained deployments. For instance, while an 802.3af PSE can supply 15.4W, the PD receives only 12.95W.

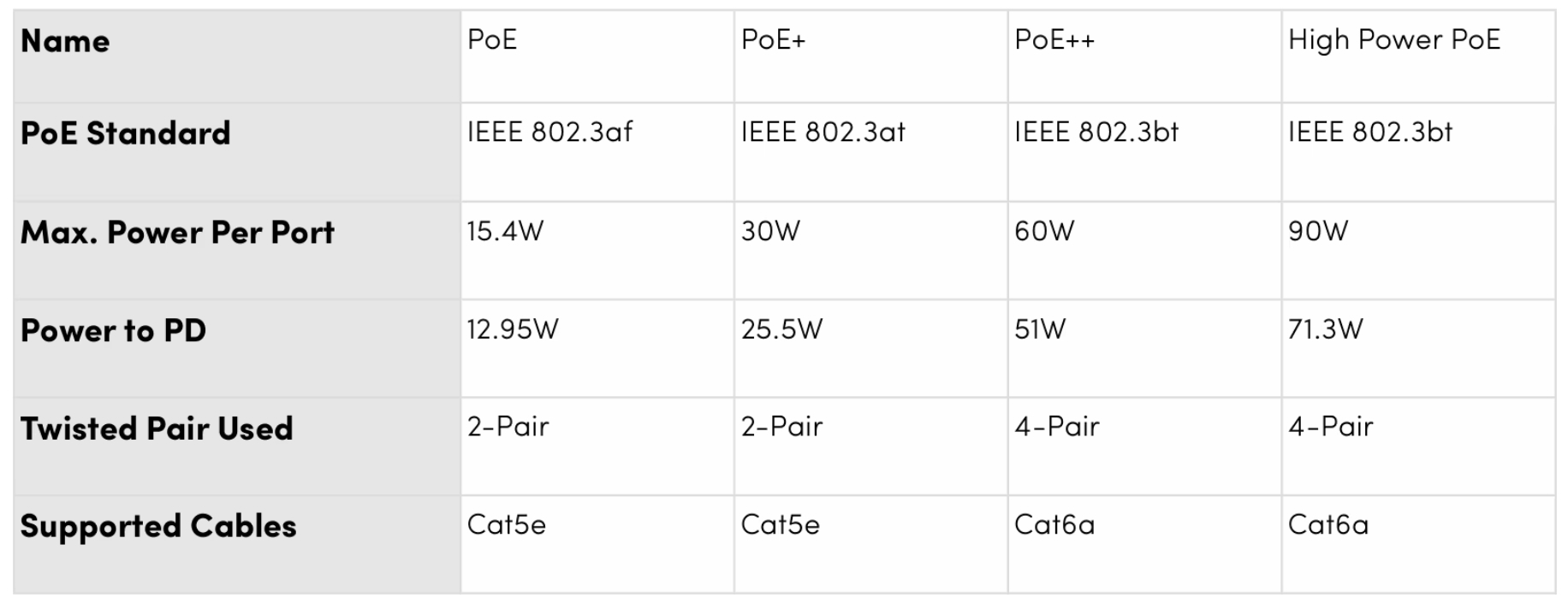

The table below shows the effective power a PD receives under different PoE standards.
Defining power across classes

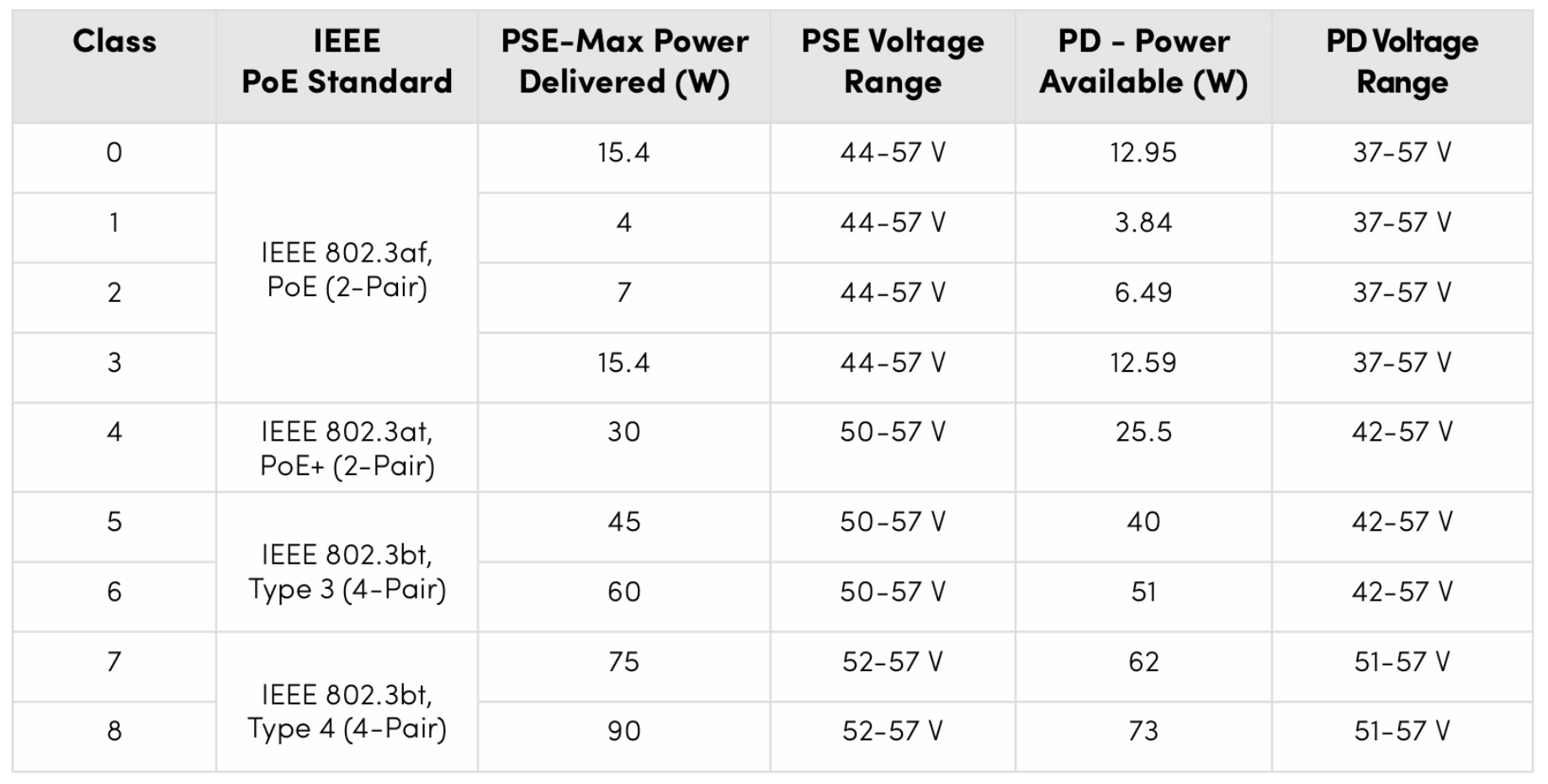

The IEEE 802.3 framework defines PoE power levels across classes 0 to 8, giving engineers precise power budgeting and interoperability between PSEs and PDs. IEEE 802.3bt (Type 3/4) extends that range with Class 5–8 support while maintaining full backward compatibility with 802.3at/af. This way, mixed-generation devices coexist on the same network without compromise.
Optimised power management through PD type recognition
IEEE 802.3bt introduces several enhancements that improve PoE predictability and efficiency:
Single- vs dual-signature PDs: Single-signature PDs use one classification circuit, while dual-signature PDs separate power to functional modules such as heaters and PTZ motors.
Connection check: bt PoE can distinguish between these PD types. This is something 802.3af/at could not do.
Autoclass: Enables the PSE to measure a PD’s actual power draw for more accurate budgeting in multi-port deployments.
Together, these enhancements improve system stability and enable more efficient use of available power resources.
Key applications for high-power PoE
With up to 90W per port, high-power PoE supports edge devices that previously required local power sources:
PTZ and AI-enhanced IP cameras: Motors, IR, heaters, and onboard AI modules often exceed 30W to 60W. High-power PoE ensures full functionality via a single cable.
LED lighting and smart buildings: High-power PoE can power advanced luminaires and control modules, while reducing standby consumption for greater energy efficiency.
Wi-Fi 6/7 access points: Multi-radio APs often require 60W+ for sustained throughput. The 802.3bt PoE standard supports stable operation without external power.
Next-generation IIoT sensors: Sensors with local processing, wireless modules, or multi-function capabilities now rely on bt PoE for stable, centralised power delivery.
Choosing an 802.3bt industrial PoE switch
Deploying bt PoE requires careful evaluation of PD power requirements and overall switch power budget. Both the PSE and PD must be compliant with IEEE 802.3bt to ensure safe and predictable operation.
Although many vendors advertise 802.3bt compatibility, some only support Type 3 (60W). Antaira provides full Type 3 and true Type 4 (90W) power across industrial managed switches, unmanaged switches, injectors, and media converters. Flagship examples include the LMP-1204G-SFP-bt-T, a 12-port Gigabit Layer 3 Lite managed switch capable of delivering Type 4 power across multiple ports.
Across its portfolio, Antaira’s high-power PoE solutions offer:
- Robust industrial performance
- Full IEEE 802.3bt compliance
- Up to 100W per port for high-power PDs and future-proof deployments
- Support for high-density, multi-device deployments
- Over 200 models across nine product lines for diverse industrial environments
To address practical challenges in field deployments, Antaira incorporates several patented mechanisms throughout the system lifecycle to improve operational robustness. These include long-distance remote recovery, automatic adjustment of power budgets when input voltage varies, uninterrupted PoE during firmware upgrades, and controlled power-off to prevent electrical arcing during cable removal.
The edge just got more powerful
High-power bt PoE delivering up to 90W dramatically expands what is deployable at the network edge. With four-pair powering, improved efficiency, and seamless backward compatibility, IEEE 802.3bt Type 4 has become a core enabler for modern industrial, smart building, and IIoT infrastructures.
As power demands continue to rise, Antaira’s comprehensive high-power PoE solutions help ensure that industrial networks remain reliable, scalable, and ready for the next generation of edge intelligence.
